Bộ điều khiển Stepper Motor 5V + ULN2003
- Phân nhóm: Mạch điều khiển động cơ
- Xuất xứ: Nhập khẩu
- Đơn vị tính: cái
Danh mục: Sản phẩm mớiMạch điều khiển động cơ
Mô tả

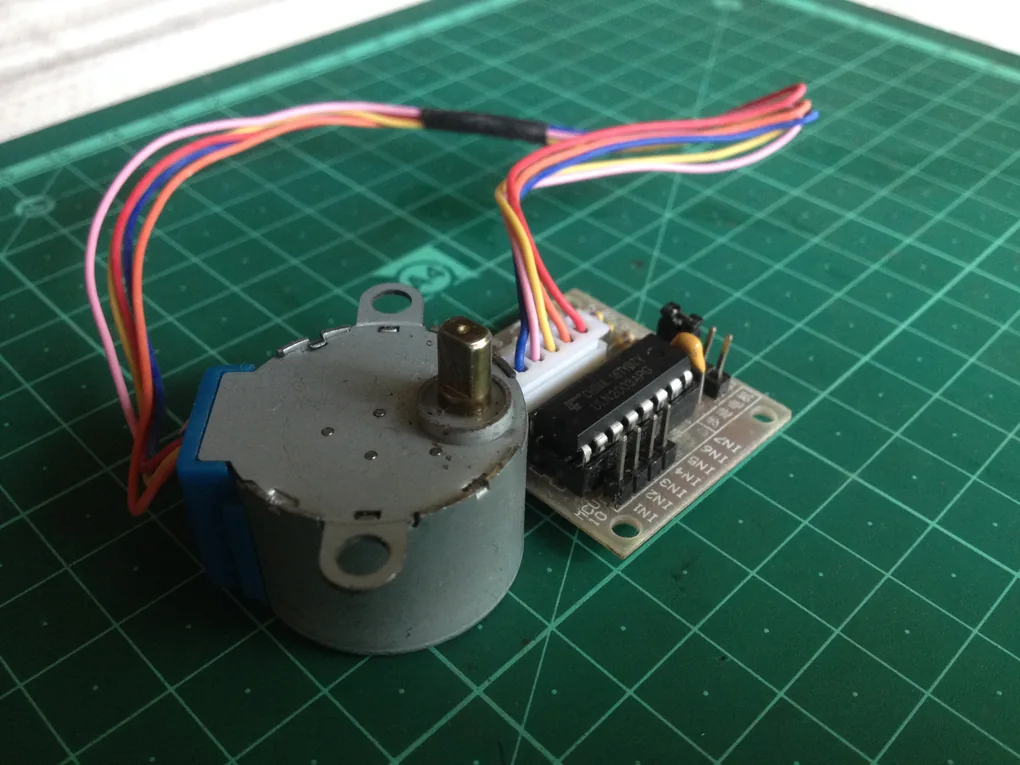

This is a 5V high torque stepper motor with more than 2000 steps per revolution. It has enough torque to move small robots. The motor can be connected with gear shaft and propeller.
Specifications:
- High quality stepper motor with ULN2003 driver
- Voltage: DC 5V
- Diameter: 28mm
- Step Angle: 5.625 x 1/64
- Reduction Ratio: 1/64
Packing List:
- 1 x Stepper motor (24cm)
- 1 x ULN2003 Driver board
Additional Motor Parameters :
Rated voltage ： 5VDC
Number of Phase ： 4
Speed Variation Ratio ： 1/64
Stride Angle ： 5.625° /64
Frequency : 100Hz
DC resistance ： 50Ω±7%(25℃)
Idle In-traction Frequency : > 600Hz
Idle Out-traction Frequency : > 1000Hz
In-traction Torque >34.3mN.m(120Hz)
Self-positioning Torque >34.3mN.m
Friction torque : 600-1200 gf.cm
Pull in torque : 300 gf.cm
Insulated resistance >10MΩ(500V)
Insulated electricity power ：600VAC/1mA/1s
Insulation grade ：A
Rise in Temperature <40K(120Hz
Noise <35dB(120Hz,No load,10cm)
Model ： 28BYJ-48
