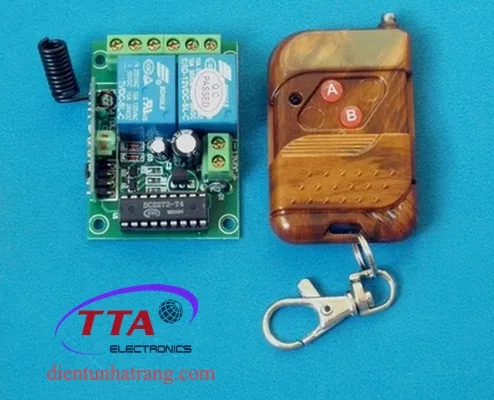

Module điều khiển từ xa 2 kênh

Control approach: one normally open (normally closed) contact

Code Type: Learning code; Taking on the code

Learning Methods: 3 seconds power indicator light, according to a study after the light turns off button and the indicator lights, press the remote control button light is off, learning success.

Clear encoding method: power indicator light 3 seconds, then turns off hold down the learning button down indicator lights, eight seconds after the light is off, clear success of the code.

Total open learning methods: power indicator lights, press 2 times in a row immediately learn button, light goes off and lights up twice, and so light is off, press the button once to learn, indicator lights, then press the remote control button The indicator goes out, success in learning.

Total Off learning methods: power indicator lights, immediately press the learning button indicator is off and lights, and other light turns off after you press the learn button, indicator lights, then press a remote control button, light goes out, learning success.

Work: self-locking / interlock / jog the user freedom of choice. (Welding T when self-locking, welding M is inching type, M and T are not welded into interlocked)

Self-locking / interlock / jog meaning explanation:

Interlock: Hand press the corresponding key on the remote control, the corresponding relay is turned on, press another button on the remote control; relay switches off.

Non-lock, jog: Hand press the remote button, the corresponding relay is turned on, release the remote control button; the corresponding relay off.

Self-locking: press the remote control button, the relay is turned on, press the button on the remote control, the relay off.
