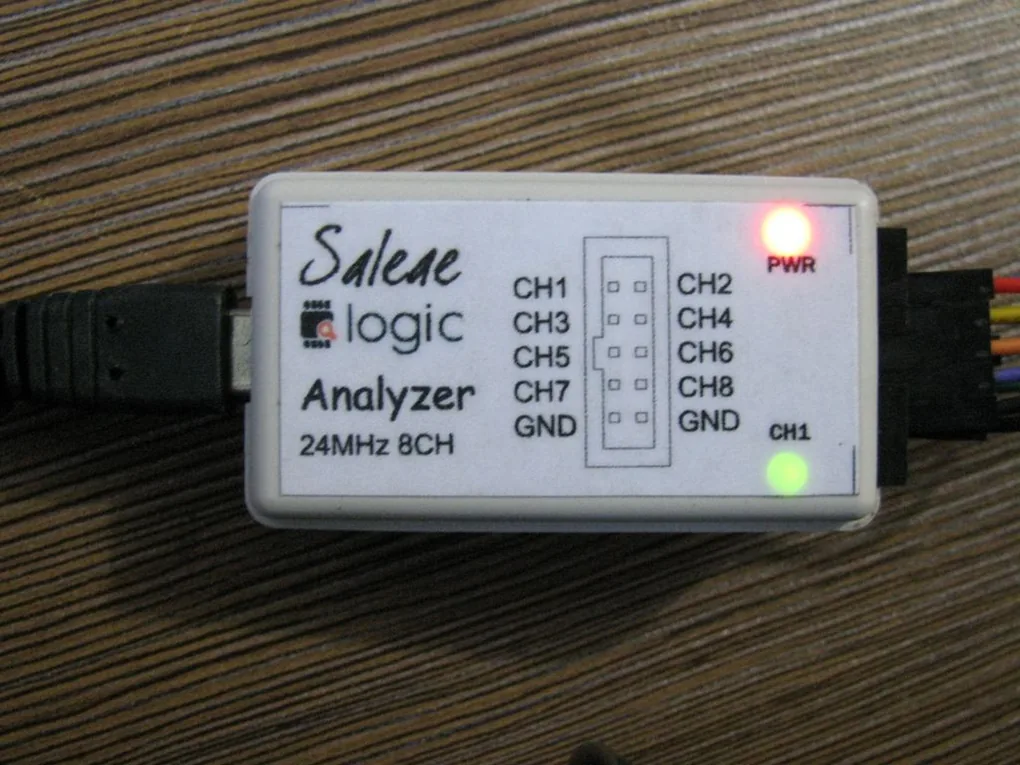

USB 24M 8CH 24MHz 8Channel Logic Analyzer Latest Support 1.1.30 ARM FPGA MCU Debugging Tool
Description:
Sampling rate up to: 24 MHz
The logic for each channel sampling rate of 24M / s. General applications around 10M, enough to cope with a variety of occasions.
8-channel:
Logic eight inputs - can be collected at the same time they signal analysis, such as I2C, UART, sampling and analysis.
10 billion samples:
The logic can sample up to 100 100 million everything, so you capture even the most elusive events.
Voltage range:
0.8V logic: 5V voltage, to accept the 5.25 V standard CMOS threshold logic low. 2.0 V logic high. The input impedance is approximately 1 MΩ to see more specifications (10 pF)
Protection:
Support for the latest version: 1.1.30 version
Note:
You can also download the driver from the link:
www.mcu123.com/product/saleae/Saleae_24M_CD.RAR
Software for learning www.saleae.com doesn't do any other purposes.
Package included:
1 x 24M 8CH logic analyzer
10 x Color DuPont line (10 different color)
1 x USB-MINI line 1
