Mô tả

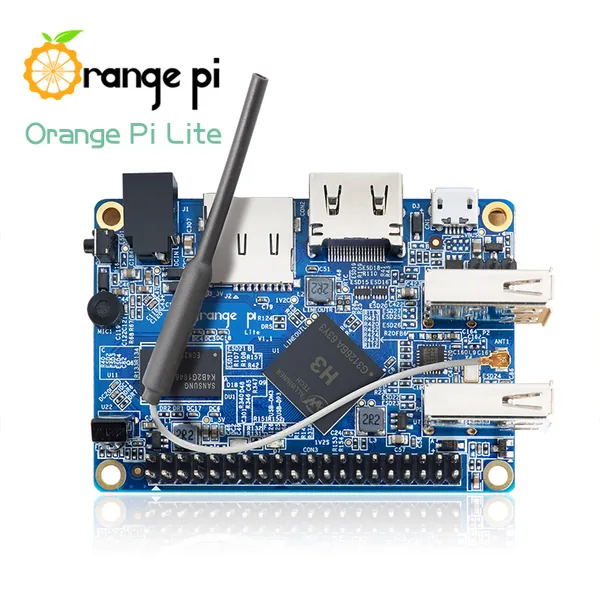

Orange Pi Lite là một single-board computer mã nguồn mở. Hoạt động với hệ điều hành Android 4.4, Ubuntu, Debian, Rasberry Pi. Nó sử dụng AllWinner H3 SoC, và có 512 DDR3 SDRAM.
Orange Pi Lite có thể làm gì?
Bạn có thể sử dụng nó tạo ra:
- A computer
- A wireless server
- Games
- Music and sounds
- HD video
- A speaker
- Android
- Scratch
- Pretty much anything else, because Orange Pi is open source
Who’s it for?
Orange Pi Lite is for anyone who wants to start creating with technology – not just consuming it. It's a simple, fun, useful tool that you can use to start taking control of the world around you.
|
Hardware specification |
|
|
CPU |
H3 Quad-core Cortex-A7 H.265/HEVC 4K |
|
GPU |
·Mali400MP2 GPU @600MHz |
|
Memory (SDRAM) |
512MB DDR3 (shared with GPU) |
|
Onboard Storage |
TF card (Max. 64GB) / MMC card slot |
|
Onboard Network |
10/100 Ethernet RJ45 |
|
Wifi Antenna |
Yes |
|
Video Input |
A CSI input connector Camera: |
|
Audio Input |
MIC |
|
Video Outputs |
Supports HDMI output with HDCP |
|
Audio Output |
HDMI |
|
Power Source |
DC input, USB OTG input don't supply power |
|
USB 2.0 Ports |
Two USB 2.0 HOST, one USB 2.0 OTG |
|
Buttons |
Power button |
|
Low-level peripherals |
40 Pins Header,compatible with Raspberry Pi B+ |
|
GPIO(1x3) pin |
UART, ground. |
|
LED |
Power led & Status led |
|
Key |
POWER |
|
Supported OS |
Android Lubuntu, Debian, Rasberry Pi Image |
|

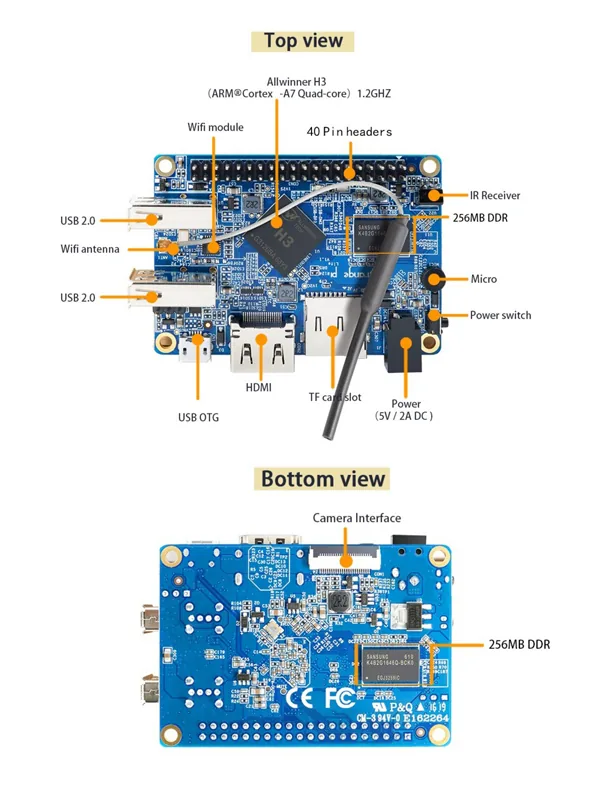

Interface definition |
|
|

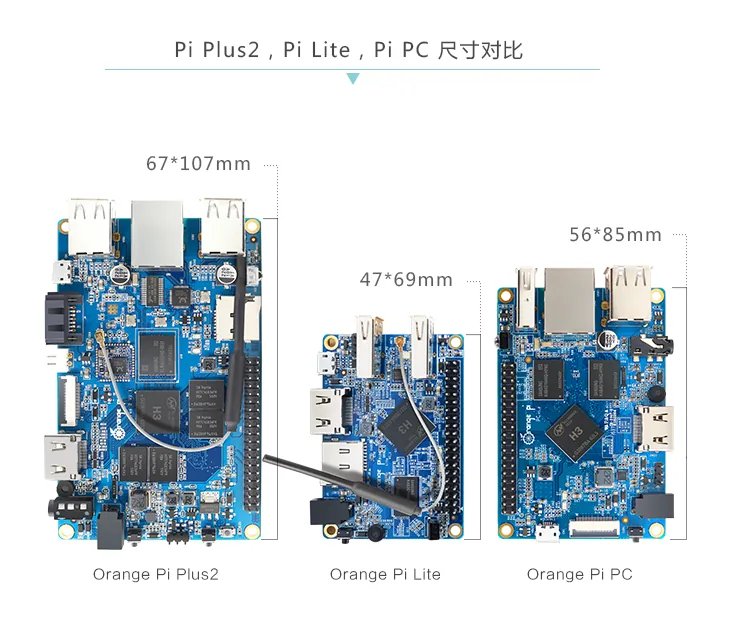

Product size |
69mm × 48mm |
|
Weight |
60g |
|
Orange Pi™ is a trademark of the Shenzhen Xunlong Software CO., Limited |
|
